Carton Box Making PLC Corrugated Flexo Printing Machine Four Colors
Product Details:
| Place of Origin: | China |
| Brand Name: | Aomei |
| Certification: | ISO CE SGS |
| Model Number: | printing machine |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 15000 |
| Packaging Details: | Cartons, Film, Case, Bottles, Belt |
| Delivery Time: | 35 days |
| Payment Terms: | L/C, D/P, D/A, T/T, Western Union |
| Supply Ability: | 1000sets |
|
Detail Information |
|||
| Voltage: | 380V, 220V/380V, 220V/380VCan Be Customized According To The Customer, 220v, 380V/220V | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Field Maintenance And Repair Service, Free Spare Parts |
|---|---|---|---|
| Weight: | 3500kg-7500kg, 3 Tons, 6300x3300x2700, About 100tons, 1600KG | Warranty: | 1 Year, 12 Months, One Year Guarantee, 3 Years |
| Type: | Packaging Line, Feeding Paper To Corrugation Machine/single Facer, Corrugated Sheet Shredder, New Type, Absorb Type | Automatic Grade: | Automatic, Semi-Automatic |
| Driven Type: | Electric, Hydraulic, Mechanical | Packaging Type: | Cartons, Film, Case, Bottles, Belt |
| Name: | 5, Corrugated Cardboard Blade And Corrugated Slitter Scorer Machine, Kraft Paper Making Production Line Paper Mill Machinery, Corrugated Paper Making Machine, 5 Ply Fully Automatic Box Corrugated Cardboard Making Machine Price | Power: | 7.5kw, About 100kw, 25kw-50kw, 41KW, Custom |
| Color: | Any Color, White And Grey, Customized, Yellow, Red | Product Name: | Corrugated Cardboard Production Line Carton Box Making Machine, Kraft Paper Roll Corrugated Cardboard Making Machine, 2 Ply Corrugated Paperboard Production Line, Semi Automatic Corrugated Paper Cardboard Slitting Machine, Fingerless Single Facer Corrugati |
| Usage: | Making Carton, Paper Corrugation, Corrugated Box, CORRUGATING CARDBOARD | ||
| High Light: | plc corrugated flexo printing machine,touchscreen corrugated flexo printing machine,plc 4 colour flexo printing machine |
||
Product Description

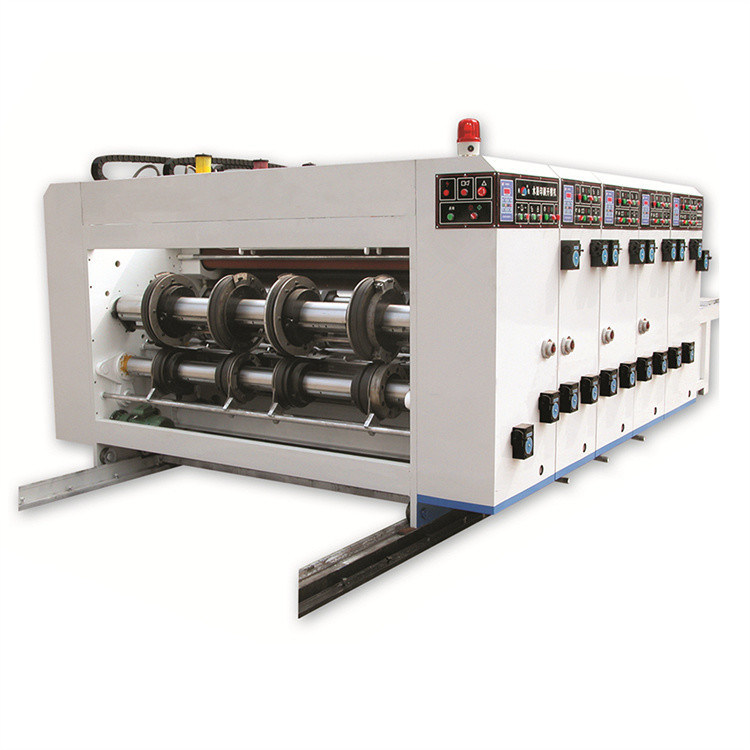

Corrugated Carton Box Making Flexo Four Colors Printing Machine
This machine adopts vacuum adsorption help carrying paper ,PLC touch screen control system.Man-machine conversation,
The main machine with frequency conversion motor.360 phase adjustment controlled by microcomputer,The speed of glue
rolls automatically giving.At the same time,it set up the computer program and glue case reparied equipment,feed accruracy
less than 0.5mm,it has many good characteristics such as slicing high precision,high speed,operating easy and so on.
| name | Unit | ZYKM-1630 type |
| Max paper coverage area | mm | 1660*3200mm |
| Skip feed paper size | mm | 2000*3200mm |
| Effective printing area | mm | 1600*3000 |
| Min feeding size | mm | 400*750mm |
| Printing cardboard thickness | mm | 7.2 |
| Machinable cardboard thickness | layers | 3,5 |
| Max speed | Pieces/min | 140 |
| Economy speed | Pieces/min | 100~120 |
| Topping precision (four color) | mm | ±0.5 |
| Slotting precision | mm | ±1.5 |
| Cutting precision | mm | ±1.5 |
| Frequency conversion power of main motor | kw | 7.5-18.5 |
| Shape size(length*width*high) | mm | 5000mm*3500mm*2500mm |
1. The Chain feed the paper enter the machine
2. The shaft , high accuracy , balance corrent , plate hard chrome , surface to grind
3. Drive gear , made use of alloy steel forging (HRC58-62) , lubricating oil pump spray , extend gear lift and ensure long-term printing chromatic precision
4. The adoption does not need key conjunction set , cancelation walk to connect cleft , exaltation printing accuracy
5. The whole machine spray to pour to lubricate and attach to extablish engine oil balance equip
6. The adoption virtuous dint erst spirit move bearings in component harbin
7. Circle the mold department machine cam 35mm visit to move and expand gum mat service life
8. Choose to pack :1. hang plank 2.net line the number make to order
Pizza box making machine is very popular , price is very good , welcome new starter owner choose this kind of machine
