Product Details:

Place of Origin: Dongguang,hebei,china
Brand Name: Aomei
Certification: ISO9001
Model Number: LUM

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 150000-300000usd
Packaging Details: as per need
Delivery Time: 5-8work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1set/5days
Get Best Price Contact Now

Detail Information

Type: Packaging Line Application: Food, MEDICAL, Machinery & Hardware
Packaging Type: Cartons Driven Type: Electric
Place Of Origin: Hebei, China Name: 3 Ply Corrugated Paperboard Production Line
Color: Any Color Warranty: 1 Year, 1year
Voltage: 220v/380v/440v
High Light:

E Flute Cardboard Box Manufacturing Equipment


B Flute Cardboard Box Manufacturing Equipment


Cardboard Manufacturing Equipment Electric Driven

Product Description

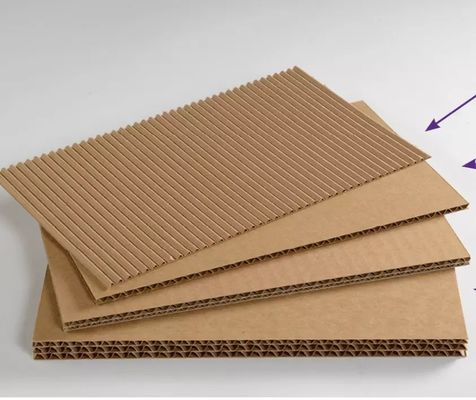

A B C E flute 5ply corrugated paperboard production line manufacture
Product Description

We are Factory -Owned machinery export office, Our factory is biggest manufacture of corrugated paperboard production line in northern China. we can manufacture 2 ply / 3 ply / 5 ply / 7 ply different automatic grade production equipment according to client factory size, production capacity , budget and other specific requirements. with more than 30 years experience and over 900 lines installing experience ,we are joining hands with clients all over the world and help them getting successful in business.

Welcome to visit our factory in Dongguang County, Hebei Province, China. 170km north of Jinan airport and 270km south of Capital Beijing airport. CRH train would be faster to arrive nearby cities. 0086-15932724068 Swift Wang.
Working Width :
1200 / 1400 / 1600 / 1800 / 2200 /2500 mm
Design Speed :
60/100 / 150 / 200/ 220 / 250 meters per minute
Heating type :
Steam heating / Electrical heating / Electircal oil heating
Production Type :
3 ply / 5 ply Corrugated paperboard /coated paperboad
Flute Profile :
A / B / C / E / F Flute Optional ( Flute height from 0.7mm to 4.2mm Tailer-made )
Factory size requirements:


According to client site situation
Power consumption:
150kw /h ---350 kw/h
Machinery Power voltage:
380V / 220V / 415V / 440V / 480V Tailored as per local power supply
3 phase 4 wires industrial power supply.
Production capacity :
20,000 ------80,000 boxes / day
Labor requirements:
10 +
Machine delivery :
By container through shipping
Machine installation:
engineers available
A B C E Flute Cardboard Box Manufacturing Equipment Electric Driven 0

Main Features

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard.
The production line consists of the Mill Roll Stand, liner (medium paper) Pre-heater, Single facer machine,
Conveyor bridge, Gluing Machine, Double facer machine, Slitter Scorer, Cut-off, Conveyer and Stacker,
Electricity system, , Steam System, Air compression system, Glue Making System Production management system

waste collecting and baling system. etc. Compare with manul ways laminating 3 ,5 and 7 ply, automatic line has

better paperboard quality and much higher production capacity, it is basic necessary equipment to produce carton boxes.

Detailed Images

Hydraulic Reel Stand with Paper loading trolley

Main axles ¢270 mm,Signle arm carrying weight 5000 kgs . hyperbolic heavy rocker, toothed chuck , multi-point brake, hydraulic drive lifting, panning left and right on the middle. Electric trolley,double track rail length 9000mm,Use in plate welding.Hydraulic paper loading and unloading device, Two-position design of loading and un loading paper, hydraulic paper on the folder to facilitate the centering, hydraulic push rod discharge paper to save manpower, hydraulic motor traction paper car.

Automatic Paper Splicer

Automatic splicer keep corrugating cardboard production line uninterrupted work, Change paper rolls without stop of machine, Zero paper joint, reduce paper consumption,Greatly improve productivity.Maximum speed 300m/min.

Liner paper Pre-Heater and Corrugated paper pre-conditioner

Use steam to heat paper getting higher production speed and control moisture of paper, cylinder diameter ¢900mm,including pressure container certificate.Electric adjustment wrap angle.Wrap angle can adjust the paper preheat area in the range of 360°.


SF405E Multi-Cassette Negative Pressure Single facer Corrugator Machine:

Main corrugating roller ¢405mm,corrugating roller group flute quick change.corrugated roller with spraying tungsten carbide dealing.with maintenance-free airbag loading,PLC automatic control glue, HMI touch screen, Breaks automatic parking relief.


Independent Gluing Unit Easy Cleaning:

The moveable type glue unit is convenient to clean and maintain with ground rails to pull out, with rails and Glue volume control with electric adjustment,rubber septum electric device,the glue system can operate independently when the motor stops,prevent glue exhausted.

Flute roller Quick Changing Module:

Quickly change rollers in 15 minutes, while change corrugated roller with the electric trolley loading,the entire group of corrugating with motor drive,put into the machine,fixed to the machine base,only need a few buttons can complete the replacement quickly and easily.



Conveyor Bridge:

Using the national standard 250 channel steel, 150H steel, 63 angle steel and other connections, independent variable frequency motor drive paper to lift and transport.

With Automatic deviation system and Electrical magnetic tension device suitable for high speed production .


GM-E Double Gluing Machine:

Glue roller diameter 320mm.Frequency motor drive, PLC control. Glue quantity PCL automatic adjustment,HMI touch screen display.


SM-E Double Baker (Double Facer )
Rack use 400 mm GB channel,Chrome hot plate600 mm *20pieces,Entrance ¢ 400mm hot cylinder of top paper speed raised temperature,16groups whole contact plate design construction.PLC automatic control press plate.Up and down with automatic correction, temperature display, frequency motor.
NCBD Computer Type Slitter Scorer Machine
Tungsten alloy steel, seven knives twelve lines,zero-pressure line type. Schneider servo computer automatically discharge knife, suction outlet width automatically adjusted.

NC-30D Rotary Blade Cutoff Machine :

Full AC servo control, energy storage brake, helical blade structure, oil-immersed gears,10.4-inch touch screen display.


Automatic basket down Stacker:

Five sections of the high-strength belt conveyor,frequency loop control,automatic points precision,row single-cycle 20 seconds,stacking length1800mm,HMI touch screen.


Steam System:

Corrugated line required 4 tons steam boiler , Pressure 0.8-1.2mpa.

Steam system components used in all GB valves.Including rotary joint,upper and lower dispenser.traps,pressure table and so on.

Our Service

1, Professional Machinery soluiton advising service, under technical support of our engineer team design and provide most suitable machines according to customer situation.

2, Engineer installation, testing and teaching local user factory worker, mechnical and electrical engineers will go to client country for machinery installation and test running, after that train local staff and worker according to situation.
3, Warranty 1 year and whole life paid service, Spare parts and Wearing parts support customer according to situation.
Packing & Delivery
120 (L) * 72 (W) * 6 (D)
120 T
Packaging Details
Usually loading container through vessel shipping, wrap with PE film and make foundation protection, also make tying steel bars inside container.
Special country use train transportation, factory will balance left & right, front & back, make even weight and tie more secuirty.
