Carton Box Auto Flute Laminator , High Speed Lamination Machine

Carton Box Auto Flute Laminator , High Speed Lamination Machine

Product Details:

Place of Origin: CN
Brand Name: aodong-01
Certification: ISO 9001
Model Number: 01-232

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 40000UDS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 270 sets per years
Get Best Price Contact Now

Detail Information

Automatic Grade: Automatic,Semi-Automatic,manual Weight: 5T
Driven Type: Electric,Pneumatic,Hydraulic,Mechanical After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training
Type: Laminating Machine,high Speed Semi-automatic Flute Laminating Machine,laminating Machine And Flip Flop Machine Application: Machinery & Hardware,Food,Commodity,Medical,Beverage
Voltage: 380V,380V/50HZ,220/380V,380V/220V,220v Condition: New
Dimension(l*w*h): 8.8mX1.7m Packaging Material: Wood,Plastic,Metal
Packaging Type: Cartons,Case,Film,Bags,Cans Power: 12kw,6kw,7 KW,6.4kw,500W
Product Name: Semi Automatic Flute Laminating Machine,Flute Corruagated Cardboard Laminating Machine,paper Mounting Machine,Cold Laminator,YFMZ1100 Automatic Thermal Film Laminating Machine Warranty: 3 Years
Speed: 0-100 Piece/minute,120-130m/min,60-150 Sheets/min,150m/min Laminating Machine Color: Customer's Request
Name: Flute Laminating Machine,flute Corrugated Board Paper Laminating Machine / Laminator Machine,Audley Packaging Machine Semi Automatic Flute Laminating Machine,Automatic Flute Carton Board Laminate Machine With Auto Delivery,Hot Sale Semi Auto Flute Laminati Function: Pressing,For Cutting Cardboard,High Efficiency,high Accuracy Laminating Machine,Gluing Corrugated Carton Board
High Light:

Carton Box Auto Flute Laminator

,

Auto Flute Laminator High Speed

,

Carton High Speed Lamination Machine

Product Description



Top Quality Automatic Flute Carton Box Laminating Machine







Introduction



Automatic Carton flute laminating machine are designed for laminating cardboard and cardboard, cardboard and corrugated board (Flute shape A, B, C, D, E, F and N), 3-layer, 5-layer, or 7-layer corrugated paperboard all can be laminated smoothly and accurately. Famous internal or foreign foreign manufacturers make all the main components with long service life and excellent stability. Electrical components of internationally known brands are adopted to ensure reliability of running.
This machine features stability, high precision, easy operation, saver of time and labour, maintenance of convenience, etc



Main technical parameters:



Model BZJ-1300L BZJ-1450L BZJ-1600L
Maximum size 1300×1300mm 1450×1300mm 1600×1300mm
Minimum size 400×400mm 400×400mm 400×400mm
Appropriate paper

Top Sheet:200-450g/m2

Card(Bottom Sheet):350g/m2

ABCDEF Flute

Top Sheet:200-450g/m2

Card(Bottom Sheet):350g/m2

ABCDEF Flute

Top Sheet:200-450g/m2

Card(Bottom Sheet):350g/m2

ABCDEF Flute

Max Speed 6000Sheets/h 6000Sheets/h 6000Sheets/h
Total power 13kw 13kw 13kw
Overall dimension 12000×2250×2655mm 12000×2400×2655mm 12000×2550×2655mm

Performance of the machine:


1, The machine adopts unique pressing spring front lay registration design complain with PLC control system with makes run at high lamination precession and low rate of breaking down.
2, The machine uses frequency converter for speed regulation, PLC central, simulation to digit program system
Double servo motors are used to control bottom sheets to get to the front lay timely and accurately. Thus the machine accuracy is ensures even in operation adjusting conditions.
3, Balance-tested rollers, tight assembling technique, plus timing belts driving mechanic system makes the machine run at low noise with high precision.
4, The machine adopts automatic glue supply and recyclable glue decollating system.
5, Self-developer high-strength feeder complaint with high configuration electric system.
6, The electric parts used are all word side available brand or well-known Chinese brand.
7, All material are inspected according to ISO-9001 standard and the key parts such as besting are importanted ones.
8, The face sheet for this machine can be 150-450GMS,The bottom sheet can be A,B,C,D,E,F flue corrugators sheet as well as 3 ply board or 5 ply card board with the maximum thickness not more than 8mm

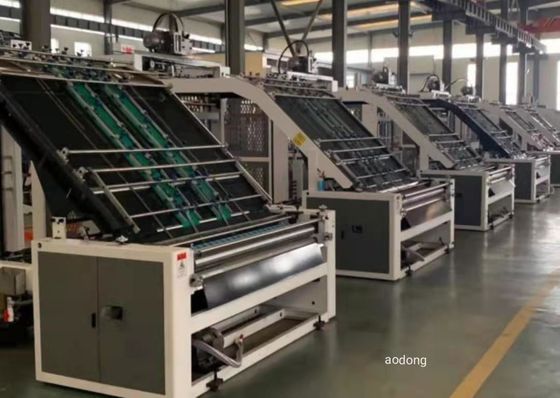

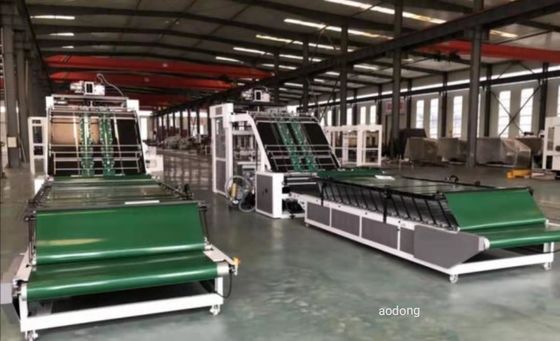

Carton Box Auto Flute Laminator , High Speed Lamination Machine 0Carton Box Auto Flute Laminator , High Speed Lamination Machine 1
