Hydraulic Mill Paper Roll Stand Machine 16MPa-18MPa Working Pressure

Hydraulic Mill Paper Roll Stand Machine 16MPa-18MPa Working Pressure

Product Details:

Place of Origin: China
Brand Name: AD
Certification: ISO9001 CE
Model Number: AD-mill roll stand

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 500
Packaging Details: as per need
Delivery Time: 200 days
Payment Terms: D/P, T/T, Western Union
Supply Ability: 1000sets
Get Best Price Contact Now

Detail Information

Driven Type: Electric, Hydraulic Weight: 2500KG, 1.5t, About 2T, 800--2000kg, 9 Ton
Voltage: 380V, 220V/380V, 380/415/220/450, Customer's Demand, 380/440V Application: Machinery & Hardware, Commodity, Food, Chemical, Apparel
Type: Packaging Line, Electric Mill Roll Stand/automatic Carton Making Machine, Mechanical Or Hydraulic Condition: New
High Light:

Hydraulic Mill Paper Roll Stand Machine

,

Paper Roll Stand Machine 16MPa

,

Mill Roll Stand 18MPa

Product Description

Hot selling product packaging machine mill roll stand new hydraulic stand/paper clip equipments

Product details

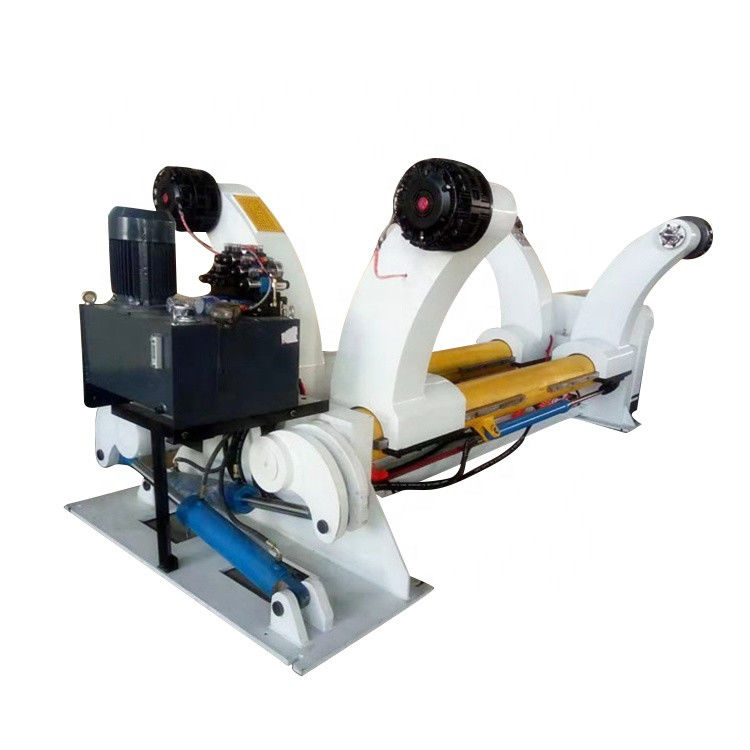

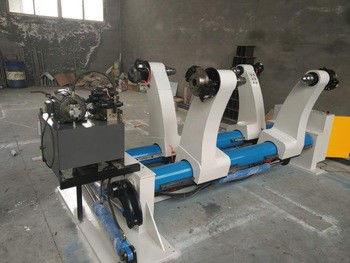

Name Hydraulic Mill Roll Stand
Application Corrugated cardboard and carton box factory
Automatic Grade Automatic
Type Packaging Line
Driven Type Hydraulic
Warranty 1 Year
Working pressure 16-18 MPa
Certification CE ISO
Air source working pressure 0.4 - 0.8 Mpa
Voltage 380V/50HZ
Product Keywords packaging machine mill roll stand,new hydraulic mill roll stand,mill roll stand/paper clip machine



Product Description

Symmetrical structure, can carry two craft paper at one time, which can work without brake.

Reel paper lift-lower, clamp, loosen, movement, contraposition operated by hydraulic

pressure. feeding craft / reel paper quickly.

Brake: pneumatic brake

Double Level Auto Expander, Expander head:3/4 inch Double Level.

Specifications of stand:

1,Reel Stand driven by hydraulic

2,Kfat paper range

Width: Max:2200mm Min:1000mm

Diameter:Max:1500mm Min:350mm

Max Weight:2500Kg(One side)

3,Main roller dia:215mm

4,Pneumatic Source Pressure(MPA):0.4---0.8Mpa

5,Power: 380V 50Hz

Hydraulic Mill Paper Roll Stand Machine 16MPa-18MPa Working Pressure 0

Hydraulic Mill Paper Roll Stand Machine 16MPa-18MPa Working Pressure 1



Hydraulic Mill Paper Roll Stand Machine 16MPa-18MPa Working Pressure 2Hydraulic Mill Paper Roll Stand Machine 16MPa-18MPa Working Pressure 3
