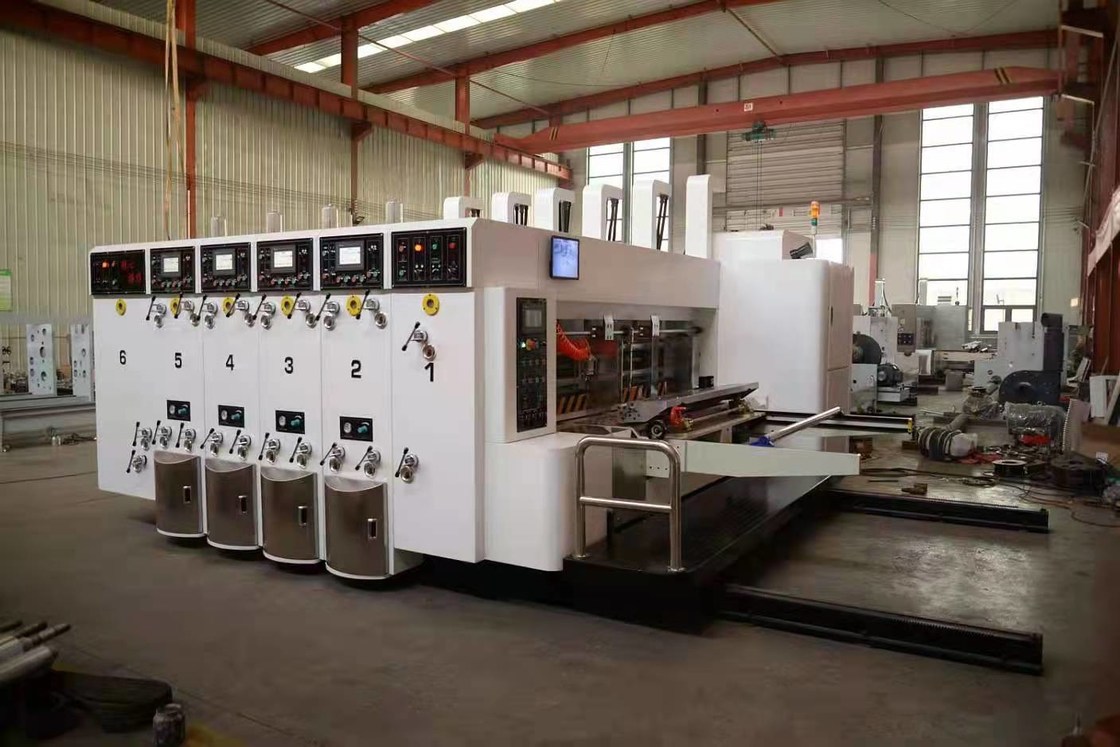

Ce Certificate Rotary Die Cutting Machine For Corrugated
|Place of Origin:||CHINA|
|Brand Name:||AO DONG|
Payment & Shipping Terms:
|Minimum Order Quantity:||1|
|Payment Terms:||T/T, D/P, L/C, D/A|
|Condition:||New||Name:||Ce Certificate Rotary Die Cutting Machine For Corrugated|
|Speed:||120-180 Sheets/min||Key Words:||Corrugated Box Printing Machine|
ce certificate rotary die cutting machine,
corrugated rotary die cutting machine,
ce rotary die cutter for corrugated
High speed ce certificate automatic leading edge feeding auto feeder corrugated board box rotary die cutting machine
1.Max die cutting range:1600mm×2480mm
2.Min. Die cutting range:400mm×600mm
5.Upper roller diameter:434.4mm
6.Down roller diameter:488-0.10mm
Die cutting part:
1.Die cutting roller is centrifugal casting, wallboard thickness is 35mm, balance correction and chrome plated.
2.The wallboard is high quality steel whose thickness is 50mm which is made by big machining center.
3.The soft roller can be grinded automatically 3-4 times to improve using rate of glue sheath.
4. Linear speed can automatically compensate to ensure the same size of every batch of paperboard.
5.Imported polyurethane glue sneath which is easy to install and can cut 8 million times.
6.Mechanical soft roller can move left and right for 40mm. Grind uniformly.
7.Six level of fine grinding gears adopt 40cr material with low noise and long service time.
8.Die cutting roller has cylinder type automatic separation to reduce the grinding of glue sneath.
Paper feeding part:
1.Adopt the world’s advanced leading edge paper feeding system which has high feeding precision of ±0.5mm. This machine can feed paper 10000 pieces per hour.
2.Draught fan can be adjusted to meet the demand of paper feeding.
3.Adopt microcomputer control and phase position can be adjusted 360 degrees quickly and accurately.
4.The front paper block board is manual adjust and sidepilegll is controlled by computer.
5.Rubber surface for paper guiding roller can avoid damaging paperboard and increase accuracy of paper sending.
1.Human-computer interface and PLC accurate control system can give perfect protection and high reliable control.
2.Main motor adopts frequency control made by Hengshui.
3.The front and back control plate is concise concentrated which can be operated conveniently.
4.The whole machine is controlled by light, electricity and gas.
5.Whole machine adopts: Hong Kong SONY Dragon Punch contactor. Japan OMRON time relay. Korea AUTONICS optoelectronic switch. Zhejiang CHINT time relay. Wuxi THINGET PLC touch screen. All are well-known brands.
Hebei Lincheng Packaging Machinery Manufacturing Co., Ltd was built in 1997 and high quality enterprise,authorized by Hebei Province Quality and Technical Supervision Bureau,ISO9001 international quality management system certificate and European CE certificate.Our company also hold People's Republic of China Customs Import and Export Right and Packaging Union Vice Chairman Units Honor.
Our company specializes in manufacturing 3-ply,5-ply,7-ply corrugated paperboard production line and carton equipment R&D,manufacturing, and oversea's sales.It covers an area of nearly 20,000 square meters,has a first-class R&D team,technical engineers,excellent management talents and domestic and foreign marketing team.Our products mainly export to America,Russia,Turkey,Korea,Egypt,India,Pakistan,Vietnam,Mexico,Saudi Arabia,the United Arab Emirates,Samoa,South Africa and other 30 countries,etc.We have set our own branch in overseas market.Also,we obtain good appraisement and high appreciation at home and abroad.
1. Q: Are you a factory or trading company?
A: We are manufacturer.
2. Q: Where is your company located? How can I visit there?
A: Our company is located in Dongguang County,Cangzhou City,Hebei Province. We are near from Beijing/Tianjin city, only need 2/4 hours,We can arrange car to pick up from airport or hotel
3. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, we can arrange visiting
4. Q: How is the warranty of the machine?
A: Our machines have ONE YEAR WARRANTY. And the engineers available for overseas service.
5. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance, which will guarantee your products receiving, we also accept other safe payment way as you want.
