Product Details:

Place of Origin: CN
Brand Name: AODONG
Certification: ISO-1908

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 5,000USD
Packaging Details: woods plastic
Delivery Time: 50 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3 sets per month
Get Best Price Contact Now

Detail Information

Voltage: 220v/380v/440,220V/380V Condition: New
Type: Packaging Line After-slae Service: Engineers Available To Service Machinery Overseas
Automatic Grade: Automatic Product Name: Cardboard Paperboard Production Line
Usage: Making Carton Function: High Efficiency
Machine Type: Carton Packaging Machinery
High Light:

220v double facer machine


gearbox drive double facer corrugated machine


separate gearbox drive double facer machine

Product Description

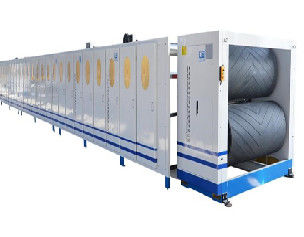

LUM-B Double facer machine


LUM-B Double facer machine


Technical parameters:

No Name Technical parameters
1 Effective working width 2200mm
2 Operation direction According to the customer requirements
3 Drive roller diameter Φ740mm
4 Steam consumption 1.2-1.8MPa
5 Compressed air 0.6-1.0Mpa
6 Steam temperature,pressure 160-200°,0.9-1.3MPa
7 Main drive motor power 55KW
8 Hydraulic lift belt motor Hydraulic station 4.0kw(choose)
9 Hot plate W600mm x 15PCS
10 Touch press shoe, QSM brand 2PCS


Structure features:

1. Whole rack adopt high-strength 40 # channel steel,tough structure and work steadily,glue rollerΦ270mm; cardboard thickness:130mm.Surface is grinded and plated chrome.

2. Hot plate 600x15pieces,QSM brand touch shoe, heating plate with high strength container board production, accords with national safety standards for pressure vessels. 600mm wide steel hot plate, inside S -shaped guide airflow structure, improve the utilization of steam. Many remain hot plate welded stiffeners never deformed. Pressure vessel with a certificate and inspection certificate.

3. Heating zone structure using intensive pressure roller or hot plate structure, cardboard stereotypes firm adhesion formation.

4. Steam pipe inlet,exhaust port by the S -shaped arrangement, hot plate temperature equilibrium and even.

5. Hot plate temperature control separately, height adjustment to adapt to the speed.

6. Heating section with electric or hydraulic roller weight overall increase, smooth movements, safe and reliable, also adopt automatic control temperature device to adjust whole system...

7. Choose a large hydraulic lifting belts, hydraulic station is 4.0kw.

8. Upper conveyor belt with automatic,manual correction device each 1set,tension pneumatic, manual adjustment each 1set;Lower conveyor belt with tension and corrective device adjustment.

9. Large diameter drive unit with a textured high-abrasion rubber, lower conveyor belt slippage and to prevent belt deviation; Improve the stability of operation of the device to ensure that the output level of cardboard.

10. Separate gear box drive,low noise,using oil immersion sealed gear;Optional electromagnetic speed motor or inverter motor drive.


Main drive-Heavy type (with full 2 ​​touch press shoes):


Main technical parameters:

No Name Technical parameters
1 Main drive motor power 55kw
2 Main Drive Roller diameter Φ740mm

Structural features:

1. Drive unit adopts independent drive gearbox, 55kw inverter motor, universal joint drive. Plastic shaft φ500 (This picture is only for reference, the actual device and image similarity)

2. Main drive roller surface vulcanized rubber herringbone abrasion, the surface was drum-shaped, lower conveyor belt slippage and to prevent migraine improve the stability of the equipment is running, make sure the cardboard flat output.



Cangzhou Aodong Light Industry Machinery Equipment Co., Ltd

Add; 104 National Road Dongguang Country, Hebei Province, China

WhatsApp: +8617320751322 / +639319452365
