Carton Lum-B 220v Fingerless Type Single Facer Machine
Product Details:
| Place of Origin: | CN |
| Brand Name: | AODONG |
| Certification: | ISO-1908 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 5,000USD |
| Packaging Details: | woods plastic |
| Delivery Time: | 50 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3 sets per month |
|
Detail Information |
|||
| Voltage: | 220v/380v/440,220V/380V | Condition: | New |
|---|---|---|---|
| Type: | Packaging Line | After-sale Service: | Enginers Available To Serve Machinery Overseas |
| Automatic Grade: | Automatic | Production Ame: | Cardboard Paperboard Production Line |
| Usage: | Making Carton | Function: | High Efficiency |
| Machine Type: | Carton Packaging Machinery | ||
| High Light: | 220v carton single facer,220v fingerless type single facer machine,carton fingerless type single facer machine |
||
Product Description

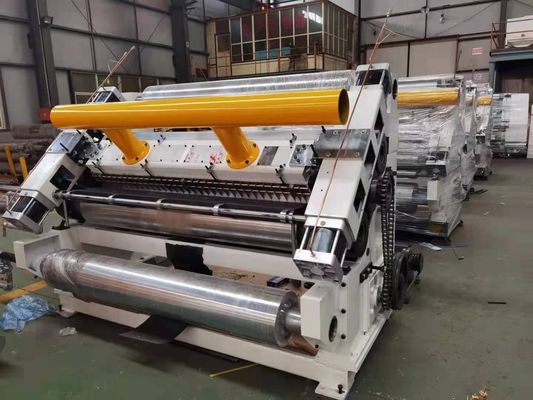

LUM-B Fingerless type single facer machine
LUM-B Fingerless type single facer machine
Main technical parameters:
| NO . | Name | Technical Parameters |
| 1. | Effective width | 220mm |
| 2. | Design speed | 150mm/min |
| 3. | Operating direction | According to the customers requirements |
| 4. | Corrugated roller flute type | According to the customers requirements |
| 5. | Basement | Casting HT200 |
| 6. | Wallboard | Casting thickness HT200/180mm |
| 7. | Upper and lower roller diameter | Φ320mm/ alloy steel |
| 8. | Pressure roller diameter | Φ320mm /45 steel |
| 9. | Upper and lower preheating roller diameter | Upper and lower preheating roller diameter |
| 10. | Main frequency motor | 15kw (Excluding frequency inverter,18.5kw) |
| 11. | Blower fan | 15kw( Depend on flute type) |
| 12. | Pneumatic power |
0.4-0.9Mpa.
|
Structural Features:
1. Adopt vacuum absorption, equipped with a high-pressure blower. Adopt wind control device and air draft silencer; electrical control is centralized in the same host which should not be less 1.5m from the main motor. The operating side is totally closed with cover.
2. Adopt universal joint drive, fission structure. Enclosed gear transmission Immersion type lubrication can extend gear's working time.
3. Corrugated roller diameter is Ø320mm, and adopt 48CrMo high quality alloy steel. After quenching, tempering, hardening and surface polishing and chroming, the plate hardness can reach above HRC60 degrees. Adopt air cylinder control up and down.
5. Pressure roller diameter is Ø320mm which adopts 45# carbon steel modulation process. The roller surface is grinded and chromed, controlled by air cylinder to up and down.
6. Upper and lower preheating roller diameter are Ø400mm; the surfaces are all grinded and chromed and connected with metal hose
7. Pneumatic control glue; glue roller diameter is Ø215mm, engraved with the pit-style textured and hard chrome plating. Glue adjusting roller surface is polished and chrome plating.
8. Corrugated roller and pressure roller bearing can bear high temperature lubricating grease.
9. Use electronically insulate glue device, so the gluing part still work when the machine stops to prevent the glue from drying out.
10. Corrugated roller unilateral height is 0.10 mm, pressure roller unilateral height is 0.075 mm. Add spacing device and Ø 160 mm pressure cylinder.
11. Electronic components and accessories: Schneider and Delixi brand.
12. Pneumatic components, rotary joints, metal hose: YADEKE,TENGZHOU brand
Cangzhou Aodong Light Industry Machinery Equipment Co., Ltd
Add; 104 National Road Dongguang Country, Hebei Province, China
WhatsApp: +8617320751322 / +639319452365
