Five Layer 440v ISO Corrugated Cardboard Making Machine

Five Layer 440v ISO Corrugated Cardboard Making Machine

Product Details:

Place of Origin: CN
Brand Name: aoodng
Certification: ISO9001
Model Number: aodong-150-5

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 2000 usd
Packaging Details: woods plastic film
Delivery Time: 60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per year
Get Best Price Contact Now

Detail Information

Voltage: 220v/380v/440v,220V/380VCan Be Customized According To The Customer Condition: New
Type: Packaging Line,Corrugating Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas
Automatic Grade: Automatic Dimension(l*w*h): Depends On Configurations
Certification: CE,ISO,ISO9001 Driven Type: Electric,Hydraulic,Mechanical
Warranty: 2 Years Name: 5 Ply Fully Automatic Box Corrugated Cardboard Making Machine Price
Usage: Making Carton Function: High Efficiency
Machine Type: Carton Packaging Machinery
High Light:

5ply corrugated cardboard making machine


440v corrugated cardboard making machine


ISO corrugated cardboard making machine

Product Description

Five-Layer Corrugated Cardboard Production Line AO 150 1800 5



Five-layer corrugated cardboard production line AO 150 1800 5
is an automatic line that produces five-layer corrugated cardboard (two corrugated and three flat layers). The line consists of a number of machines, such as: heater, corrugated press, storage bridge, drying and cooling table, adhesive preparation system and glue circulation system, etc. The machines are technological, easy to use and safe. Meet all the requirements of modern production and quality of products. On the line can be produced 3-layer corrugated cardboard. Specifications of the line AO-150-1800 5:

. max. Working width: 1800 mm;
2. Design speed: 150 m/min;
3. Actual speed: 100-120m/min for 5 layers;
4. Electricity: 380 V, 50 Hz, three-phase or four-phase;
6. Requirements for pairing:
Steam consumption: 2500-3000 kg/h, max. Pressure: 1,2 MPa;
7. Power of all components: 220 kw, actual power when operating the line: 150 kW (at full speed).

Composition of the line for the production of five-layer corrugated cardboard WJ 150 1800 5:
Rails and trolleys for feeding bobbins 10pcs.

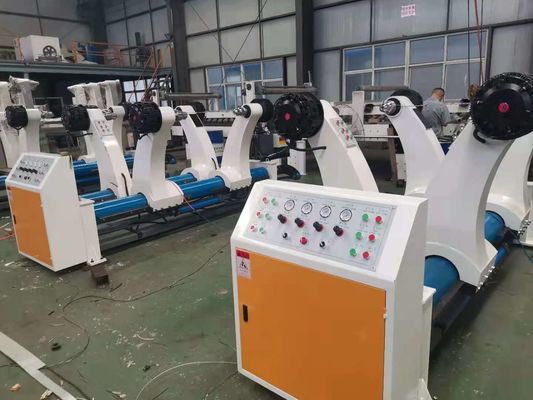

Rolling for hydraulic reassers with pneumatic tension system of the canvas 5pcs.
Heater for cardboard O800 2pcs.
Corrugated gimbal, vacuum O320 2pcs.
Paper heater O600 2pcs.
Storage bridge with vacuum tension system of the canvas, two-storey 1pc.
Three-storey heater, O1100 1pcs.
Glue grinding machine, two-storey 1pc.
Drying and cooling table, 15 heating plates, 8 meters cooling part 1pc.
Main drive 1pcs.
Longitudinal cutting machine, computerized, with thin self-sharpening knives 1pc.
Fabric separator 1pc.
Computerized cross-cutting machine 1pcs.
Sheet laying two-storey 1pc.
Adhesive system and glue circulation system 1pc.
Pneumatic system 1pcs.
Pipeline and steam-wire system 1pc.
Trim removal system 1pcs.
We supply various industrial equipment. appointments from China under the order.
