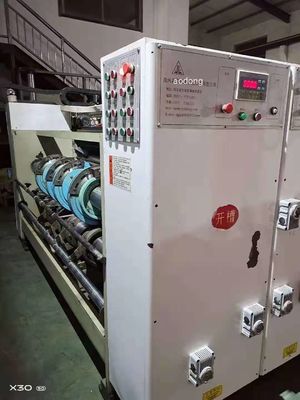

Cardboard Printer Slotter Die Cutter Mould Machine With Slotting Phase Adjustment Mechanism
Slotting knife adjustment mechanis
1) The knife shaft is a seamless steel tube, after two grinding processes, the surface is plated with hard chromium, and the movement is stable.
2) The slotting width is 7mm.
3) The box height adjustment adopts four-knife synchronous electric adjustment and button control.
4) Manual adjustment of the gap dial of the slotting tool holder, the adjustment range is 3-12mm, the cross slide mechanism is adopted, and the transmission gear always guarantees the correct meshing state during adjustment.
Slotting phase adjustment mechanism
1) Planetary gear mechanism.
2) The slotting phase is adjusted by a digital input 360° computer touch screen, and the machine can be adjusted during operation and stop.
Pre-pressing wheel: The upper and lower are super-wide large-arc counter-rolling, and the lower wheel is a circular-arc wheel, which effectively destroys the corrugation inside the cardboard.
Forming crimping wheel: The upper wheel is designed with a rubber wheel, and the lower wheel is a single-line design with imitation die-cutting. The crimping line is not easy to break, and the folding line is straight and easy to fold. The pressing effect is greatly improved, laying a good foundation for the subsequent processing of the carton. Effectively improve the working efficiency of the automatic box gluer or automatic nail box machine.
