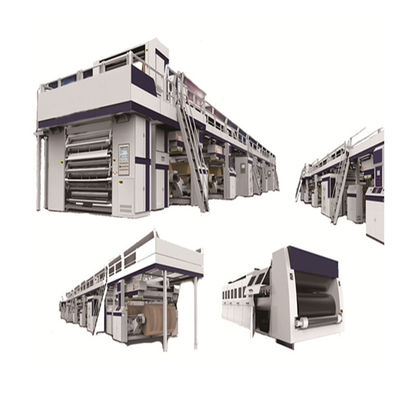

High Speed Corrugated Cardboard Making Machine 1 Year Warranty
Product Details:
| Place of Origin: | Dongguang,hebei,china |
| Brand Name: | Aodong |
| Certification: | ISO9001 |
| Model Number: | LUM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 150000-300000usd |
| Packaging Details: | as per need |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1set/5days |
|
Detail Information |
|||
| Type: | Packaging Line | Application: | Food, MEDICAL, Machinery & Hardware |
|---|---|---|---|
| Packaging Type: | Cartons | Driven Type: | Electric |
| Place Of Origin: | Hebei, China | Name: | 3 5 7 Ply Automatic Paperboard Making Machine |
| Color: | Any Color | Voltage: | 380V, 220V/380V, 3Phases, 380V/50HZ, 220V/380V/440V |
| Certification: | CE ISO9001 | Warranty: | 1 Year |
| High Light: | High Speed Corrugated Cardboard Making Machine,Corrugated Making Machine 1 Year Warranty |
||
Product Description
Automatic High Speed 3/5/7 Layers Corrugated Box Cardboard Production Line
| No. |
Name |
Qty | Feature |
| 1 |
CRSH Hydraulic Mill Roll Stand
( with trolley and track)
|
3 | --Main shaftφ242mm,double curve heavy rocker arm, tooth chuck, pneumatic type multi point brake,hydraulic lifting,left and right translation --Guide rail length is 6000 mm, the trolley adopt 10 mm plate welding |
| 2 |
CPH-60 Pre-heater
|
2 | --The roller φ600 mm,Electric adjustment angle,adjusting heating area within the range of 360 ° |
| 3 |
CSF-A15 Single Facer
|
1 |
--Corrugated rollerφ320mm, 48CrMo high quality alloy steel,plating chromed --Independent gearbox,universal joint drive structure --Cylinder control lifting --Pneumatic control glue,circulating supply glue --Man-machine display |
|
Change Module
|
1 | Fast change the corrugated roller for the casset type single facer | |
| 4 |
COBH Conveying Bridge
|
1 |
--The main beam is connected with the GB 200 channel steel, 150H steel, 63 angle steel --Independent frequency motor drive paper conveying --Suction tension and electric correcting |
| 5 |
Duplex Pre-heater
|
1 | --The rollerφ600 mm,electric adjustment angle angle,adjusting heating area within the range of 360 ° |
| 6 |
CGM-15 Glue Machine
|
1 |
--Glue roller φ269mm,carved 25 line pit type mesh --With preheater device --Independent frequency motor drive --Circulating supply glue with PLC control --Man-machine interface display |
| 7 |
CDF-60 Double Facer
|
1 |
--Main frame is 360 mm GB channel steel --Hot plate 600 mm 14pcs with plating chrome --4 M cooling section --Adopt pressure bar lifting by pneumatic control --The upper belt correct automatically |
|
8 |
CNC Servo Rotary Shear
|
1 | -- Cutting waste paper and notch of change order |
| 9 |
CSS-E Electric Blade Machine
|
1 |
--Blade adopt tungsten alloy steel --Electric adjusting and correcting --Automatically grinding --5 blade 8 line |
| 10 |
Duplex NC Cut-Off
|
1 |
--Full AC servo motor and servo control --Energy storage type braking --Duplex helical knife structure --Duplex frequency motor drive --Oil-immersed gear transmission --10.4-inch touch screen display |
| 11 |
Duplex Gantry Stacking
|
--Duplex gantry stacking structure --Servo drive platform lifting --Three-section variable frequency transmission,imported high-strength belt output --Automatic counting and stacking --Max stacking height 300mm |
|
| 12 |
Glue Making System
|
1 |
--Customers supply the pipeline --The glue making device includes: carrier tank,main body tank,storage tank,glue feeding pump and returning pump |
| 13 |
Internal Steam System
|
1 |
--Steam system components adopt GB valve: Contains rotary joint,up and down distributor ,drain valve and pressure gauge, etc --Boiler and pipeline supply by customer |
|
14
|
Auto-Splicer 2200mm
|
3
|
PLC automatic control; with the original paper frame automatic tension control PLC
|
