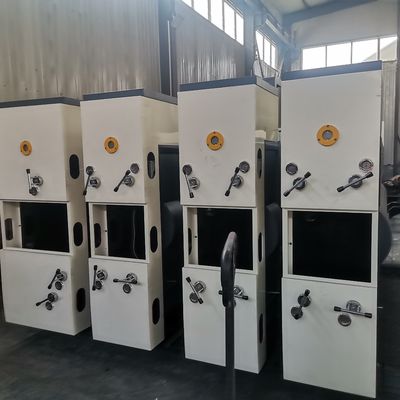

Computer Controlled Corrugated Box Printing Machine With Remote Diagnosis
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||plastic and wood|
|Delivery Time:||35 days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||200 sets per year|
|Type:||Flexographic Printer,Carton Printer Slotter Die Cutter Machine,Carton Box Printing Machine,Semi Auto Or Full Auto,Packing Machine||Automatic Grade:||Automatic,Computerized,Semi-Automatic,Semi|
|Voltage:||380V,220V/380V,3Phases,380V/50HZ,220V/380V/440V||After-sales Service Provided:||Engineers Available To Service Machinery Overseas,Avaliable,Overseas Service Center Available|
|Usage:||Paper Printer,Card Printer,Label Printer,Cloths Printer,Bill Printer||Weight:||2600-3000Kgs,10-30ton,13T-25T,10-28MT|
Computer Controlled Corrugated Box Printing Machine,
380V Corrugated Box Printing Machine,
Corrugated Printing Machine With Remote Diagnosis
·This machine is designed and made to stringen specification and safety standard,with the advantages of high speed, auto control and quick order shift.
·Adopt high quality material and parts. All electronic components are with CE standard and safety standard can equal European.
·Every unit is fixed with vacuum suction transtem,able to shift order of the idle printing unit under production.
·Adopt the advanced Siemens Servo control system from Germany,auto tracking and responding to ensure long-term high printing precicion.
·Apply advanced electrostatic adherence,hair brush and roller brush combined dust collection system,achieve good dust removal effect and ensure perfect dot and solid printing result.
·Centralized computer control with memory of whole machine and able to save orders.
·Able to facilitate the production management.
·Equipped with remote diagnosis and maintaince function.
|Model||900 * 2000||1200 * 2000|
|Max Mechanic Speed||300 pcs / min||280 pcs / min|
|Max Feeding Size||880 * 2000 mm||1180 * 2000 mm|
|Min Feeding Size||300 * 650 mm||350 * 750 mm|
|Skip Feeding||1100 * 2000 mm||1500 * 2000 mm|
|Max Printing Area||800 * 2000 mm||1150 * 2000 mm|
|Max Thickness of Board||7.2 mm||7.2 mm|
|Min Slotting Space||240 * 80 * 240 * 80 mm||250 * 90 * 250 * 90 mm|
|Max Slot Depth||250 mm||320 mm|
|Max Thickness of Board||12 mm||12 mm|
|Dimension (L * W * H)||111659 * 4240 * 3200 MM||13015 * 4400 * 3500 MM|
