corrugated paperboard producion line
|Product name||Food board production line and Cardboard machine|
|Paper Type||Corrugated Paper|
|Use||Food Wrapping Paper|
|Compatible Printing||Offset Printing|
|Pulp Material||Straw Pulp|
|Color||According to customer’s requirement|

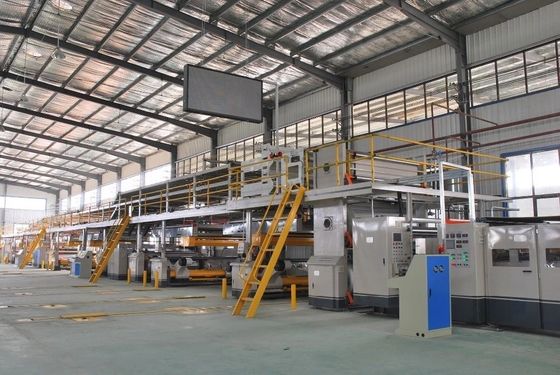

Corrugated Cardboard Production Line is the professional equipment for producing corrugated cardboard.The 3ply,5ply,7ply,and multi-function corrugated cardboard production line mainly consist of the following equipment :Mill Roll Stand, surface paper(corepaper) pre-heater.Single facer, Conveying Span Bridge.Glue Application Machine, Double Facer,Slitter Scorer,Cut-off,Conveyer and Stacker,Steam heating System, Air compression system and Glue Making System, etc.Different models and quantities equipments can compose different models and grades 3ply,5ply,7ply corrugated paperboard production line. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 80-260m/min;the paper width 1400-2200mm and A/C/B/E/F five flutes for customer to choose from,the flute shape is UV shape and more like V shape.
The compant has more than 30years of research and development manufacturing experience,the compang has been adhering to the "quality as the guarantee ,srrvice as the purpose,customer first" concept with advanced technology,professional knowledge,and computerized management engaged in corrugated carton machine production equipment development and manufacturing.
SF-280S fingerless type single facer
1.Adopts the hood suction type structure, matches the high pressure strong fan. Air absorption and silencing device, air source and electrical control concentrated in the same operating cabinet, distance from the main engine is not less than 1.5 meters, the operating side is completely closed full hood.
2.Base and wallboard cast iron wall,Wallboard thickness130mm.universal Joints.
3.Corrugated roller material adopt 48CrMoalloy steel,quenched,Laser hardening,Surface finish,main roll of corrugated diameter 280mm,surface hardnessHRC60degree above.The key parts of the tile and pressure roller bearings Wafangdian produce high temperature bearings.
4.Pressure roller 284mm,surface grinding and chrome-plated;cylinder control and remove up and down, 45 carbon steel materials, quenching (with cushioning devices).
5.Pneumatic control glue to glue back, glue roller diameter 215mm,Engraved polished surface after a 25-line pit style textured machined chrome plated,after scraping the roller surface polished hard chrome plated.
SM-10type double facer
1.Heating plate surface by grinding treatment, hot plate width 600mm, a total of 9 heating plate and cooling 4 m.Heating plate with a container board production, in line with national standards for a class pressure vessel, with pressure vessel certificate and inspection certificate.
2.Hot plate with intensive gravitational roll structure. Roll adopt pneumatic lifting.
3.Heating plate heat transfer pipe temperature control sub-four-segment, with a temperature display.
4.Double cylinder S type cotton belt tensioning device is used for upper cotton belt.The lower band adopts S-shape manual deflect-correcting tensioning mechanism, the structure is simple and practical, and the lower belt is a set of manual fine adjustment.
5.Drive roller coated with attached wear-resistant rubber ,showed a herringbone structure,With a high, ensure smooth cardboard output.
6.Main drive motor for frequency conversion motor,low-speed torque,wide speed range ,reliable, and easy maintenance.Hot plate internal for partition isolation structure,s-shaped flow of steam,Steam, water separation function significantly improves the utilization of steam.
ZJ-F shaftless mill roll stand
1.Symmetrical structure can also install two bundles of paper at the same time,Paper can be used for non-stop for a job;Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.
2.Manual disc brake, the lower limit screw, gear clamp head.
3.The main frame is 14 channel steel welded with 20mm cold drawn round steel, and the length of ground rail is 6000mm.
ZDF conveyor bridge
1.This part is the main beam of the 20th channel, 16-beam, angle iron 63, column, etc. are connected.
2.Both sides of the security fence, ladder , high-strength save people the word pedals, ensure the safety of personnel and easy to operate.
3.Pull the paper shaft surface tension axis, feeding shaft by grinding hard chrome plated.
4.Vacuum tension control, 5-inch suction tube, plus regulating valves, air flow can be infinitely adjustable.
5.Dual front bezel correction guide column positioning, screw driver, fast and accurate positioning, walking steadily.
1.After the glue roller surface after quenching inner hole machining, grinding and dynamic balancing surface engraved with pit style textured, coating evenly, less consumption of plastic.
2.Doctor roller surface by grinding and hard chromium plating.
3.other guide rollers with hard chrome plated..
4.Pressure roller with pneumatic lift, easy operation.
5. manually adjust scraping gap.
ZQS Thin knife slitting
1.Overcome the conventional type of pole, cutting pressure lines appear when collapsed cardboard cut phenomenon, cutting board smooth, quality has improved significantly.
2.The whole machine can remove left and right,cycloid reducer to adjust.
3.The machine adopt five knives eight lines,the blade is made of tungsten alloy steel, the using life is not less than 3 million running meters.
DMT-120paper sheet delivery and side conveyor
1.Adopted on the 16th channel welded.Electric adjustment of cardboard the size of the lateral output pneumatic control board, electrically adjustable conveyor speed.
2.Cardboard sheets to the desired number or height requirements will be controlled by a foot switch out of cardboard.
3.Vertical bin using wide flat belt conveyor transport.
Plastic fresh-keeping film packaging, according to customer requirements, cabinets, transport to the port.
Consumer confidence unit, brand company of Hebei Province.
1. Q: Are you a factory or trading company?
A: We are a manufacturer which is specialized in the production of various kinds of carton equipments for 30 years. (with export license)
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Dongguang industrial area south of Dongguang County, Cangzhou City, Hebei Province, China. It is about 2 hours from Jinan International airport by car. And it is about 1 hour from Cangzhou high-speed rail station. We can pick you up if you need.
Welcome to visit our factory!
3. Q: What are your products?
A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment.
4. Q: How does your factory do regarding quality control?
A: Over the years our company take “quality as the guarantee, service as the purpose, customer first” corporate purpose always meet user's requirements as our sole purpose providing the products with excellent quality, professional technology. XINGUANG packing machinery CO., LTD always attach great importance to quality controlling from the very beginning to the very end.
1) All raw material we used are environment-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department specially responsible for quality in each process
5. Q: How is the evaluation of the products?
A: Products are distributed Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country. Product quality and enter reputation get the high praise at home and aboard.
6. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
