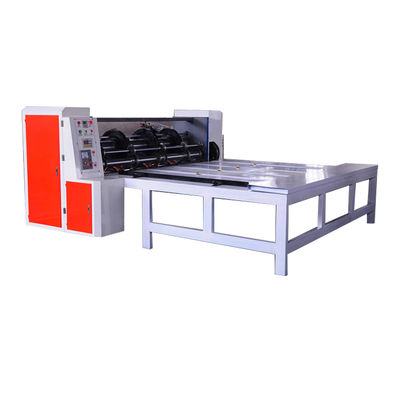

Rotary Chain Feeding Flexo Printer Slotter Machine Smooth Operation
Product Details:
| Place of Origin: | China |
| Brand Name: | Aomei |
| Certification: | ISO9001 CE |
| Model Number: | AD- Flexo Printer Slotter Rotary Die Cutter Corrugated Carton Box Making Machine |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 1000-50000 |
| Packaging Details: | as per need |
| Delivery Time: | 35 work days |
| Payment Terms: | D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000sets |
|
Detail Information |
|||
| Speed: | 100-150pcs/min | Warranty: | 1 Year |
|---|---|---|---|
| Keyword: | Kraft Carton Food Packing Package Box Make Machine | Anilox Roller: | Steel Anilox Roller |
| Power Supply: | 380v/220v/50Hz | Voltage: | 220V/380V |
| High Light: | 50Hz Rotary Flexo Printer Slotter Machine,Flexo Printer Slotter Machine Smooth Operation,50Hz Rotary Feeding Flexo Printer Slotter |
||
Product Description
Rotary Chain Feeding Slotting Carton Machine
Semi-Auto Chain Feeder Printer Slotter Machine
Product Application:
Thin knife paper sliting and creasing machine is the substitute machine of original slitting scorering machine with thick angle cutting knife. The corrugated board which is cut by this machine , edge is smooth, bright and clean, corrugated straight , not degum, improve the quality of the appearance of the edge . Cutting knife is with sharpening device, can keep the sharp blade of thin blade . Each group of thin blade , the depth of cut can be adjusted alone, can adjust the depth of cut of new and old blade to a consistent state; Or according to the requirement of the slitting , can make one group of knife not working . With smooth operation, low noise, good quality of paper, it is an ideal equipment for users to enhance the competitiveness of the cartons.
Function:
1). Pre-pressing paper feeding type, smoothly
2). Grind the blade edge with grindstone in two methods: manually
3). Sharp blade edge can slit the cardboard smoothly and neat.
4). Work process: Pre-pressing, slitting and creasing. Creasing line without crack.
5). The machine can be provided to corrugated paperboard production line
Use and Characteristics:
The machine can be composed of two-color, three color, four-color printing slotting die cutting machine, while providing a
complete printing, slitting, creasing, die cutting, corner cutting process, and the advantages of similar products in the
absorption of the aircraft based on the all- new design, has a beautiful appearance, novel, compact, high-resolution printing,
color printing error is small, easy adjustment and accurate, can achieve seamless transmission gear, and can achieve non-stop
printing roller electric phase adjustment of 360 degrees, the aircraft manual and pneumatic lift version has two structural forms,
pneumatic structure air can be achieved with ink and inking roller from the printing plate automatic inking and improve the
operating speed, the aircraft and is equipped with manual and electric phase of the phase two, 360-degree adjustment phase, the
ink not to dry and condensation, improved network roll and rubber roll life. Is ideal for carton industry and advanced printing
equipment.
