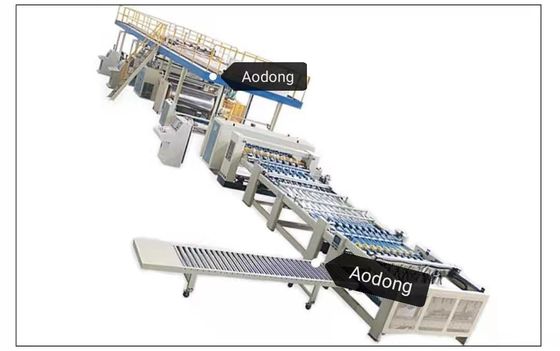

Corrugated Cardboard Production Line Manufacturing Machine 5 Ply
Product Details:
| Place of Origin: | CN |
| Brand Name: | Aomei |
| Certification: | ISO9001 |
| Model Number: | LUM-A/B/C 3000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 2300-3000doller |
| Packaging Details: | wooden box |
| Delivery Time: | 37days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 19 sets per month |
|
Detail Information |
|||
| Voltage: | 380V,220V/380V,380V/50HZ,220v/380v/440v,220/110 | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Maintenance And Repair Service | Type: | Packaging Line,Cleaner,New Type,3&5&7 Ply High Speed Corrugated Cardboard Production Line,corrugated Paperboard Production Line |
| Automatic Grade: | Automatic,Semi-Automatic | Driven Type: | Electric,Mechanical |
| Application: | Machinery & Hardware,Food,Textiles,Commodity | Weight: | 120t,60T,000kg,15,15T |
| Dimension(l*w*h): | 2290*1210*2520mm,50-80m,Configuration,according To Customer Request,4500*2300*2300 | Packaging Type: | Cartons,Case,Film,Stand-up Pouch,Bags |
| Packaging Material: | Plastic,Paper,Wood,Metal,Glass | Warranty: | 3 Years |
| Power: | 40 Kw,300kw,8KW,2.25-59kw,260-380KW | Name: | Making Machine Production Line,High Speed 3 5 7 Ply Corrugated Cardboard Production Line,Corrugated Cardboard Production Line |
| Speed: | 80-200m/min,45-55pcs/min,middle Speed,100pieces/min,150m/min | Usage: | Making Carton,Making Corrugated Cardboard,Machinery & Hardware |
| Product Name: | Corrugated Cardboard Production Line,Automatic Corrugated Carton Packing Machine,3/5 Ply Automatic Corrugated Board Plant | Function: | High Efficiency,cardboard Making Production Line,to Produce The Corrugated Paperboard,Paper Making,Make Corrugated Cardboard From Craft Paper |
| Color: | Or According To Your Request,optional Paint Color,White,as Client's Requiremnets | ||
Product Description
MAIN SPECIFICATION
Corrugated Cardboard Production Line Manufacturing Machine 5 Ply
1.Manufacture width: 1800mm
2.Design speed: 150m/min Working speed: 100-120m/min
Note: The roll paper which is used to test the production speed should meet following requirements:
Grade: Min. B Moisture content: 11% ±2%
Face paper: 100~250g/m2 Liner paper: 100~150g/m2
Corrugated paper: 100- 200g/m2
3.Flute profiles: A,B,C ,E fluteas (per clients request)
Corrugated cardboard production line is the professional equipment for producing corrugated cardboard .
The production line consists of the Mill Roll Stand, liner (medium paper ) Pre-heater, Single facer machine ,
Conveyor bridge , Gluing Machine, Double facer machine , Slitter Scorer , Cut-off , Conveyer and Stacker,
Heating System ,Air compression system and Glue Making System and so on. We produced different grade
3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of
the customers and the advanced skills at home and abroad, our company has developed and designed these
production lines with the speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute production
line can satisfy different customers.
4.Steam requirement:
Steam consumption:2500-3000kg/hr Max. Pressure:1.2Mpa
Air compressor pressure:0.8~1.1Mpa
5. Electricity: 380V, 50Hz,three-phase four wire type(also can do as per clients country electricity standard)
6. Equipment Occupation:the real data is according to the drawing
7. Equipment Direction:Left or Right transmission will be according to client's requirements.
8. Factory request size:specific length as to the foundation of drawing
Our Company is the professional manufacture for the carton box machinery , now we already export more than 40 counties , like : USA ,Mexico ,Poladn, Spain, Russia ,South korea ,Malaysia ,India,egypt ,Kenya and so on . we always stick to the "good quiality , high credibility " business purpose , adhering to the " pioneering spirit , realistic and innovative ,strick management, keep improving " the enterprise spirit ,establish a "people - oriented " managenment philosophy and the " customer first " business strategy . Our company produces complete product specification ,elegant appearance, complete machine type, to meet the needs of different customers.Our product has a reputation for timely delivery, good service to win the user's high praise.ln the future, we will take the market-oriented, science and technology development as main power , sincerely to cooperate with the users, constantly to updated products, continuously improve product quality, perfect after-sales service, sincerely return society.
Welcome to contact us Thanks ! email: sale01@AoMeipack.com
