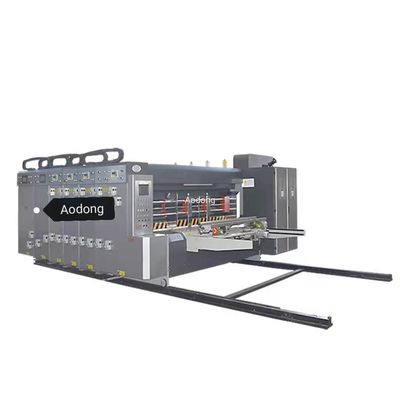

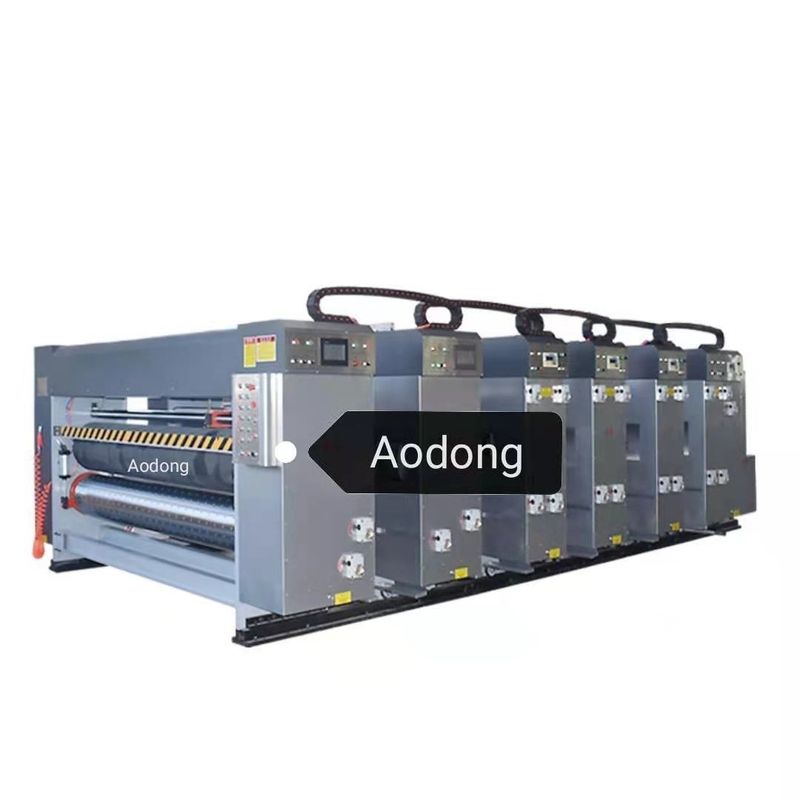

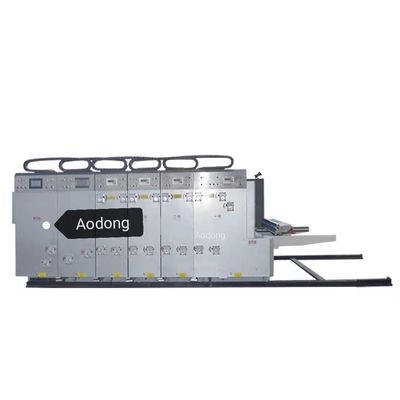

Computerised Flexo Corrugated Machine , Two Color Flexo Printing Machine

Computerised Flexo Corrugated Machine , Two Color Flexo Printing Machine

Product Details:

Place of Origin: CN
Brand Name: Aodong
Certification: ISO901
Model Number: LUM-H-2

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: concet us
Packaging Details: wood packaging
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 23 sets per month
Get Best Price Contact Now

Detail Information

Type: Flexographic Printer,Carton Printer Slotter Die Cutter Machine,Carton Box Printing Machine,automatic,WY-P4 Automatic Grade: Automatic,Full-Atuomatic,Semi-Automatic,Full-computerized
Voltage: 220V/380V/440V,380V 50hz 3phase,380V/3Phaze /50Hz Or Customized,380/440v Warranty: 24 Months
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Online Support,Video Technical Support
High Light:

Computerised Flexo Corrugated Machine

,

Two Color Flexo Printing Machine

,

Two Color Flexo Corrugated Machine

Product Description

Fully Automatic Slotting Die Cutting Lead Feeder Flexo Four Color Carton Box Printing Machine








The whole machine is designed and made according to high requirements with reliable and safety function; allows quick order changing and user friendly operation;


►Independent computer control is able to store different orders,enable quick order changing;
►Each working unit is motorized for open and close actions,with warning alarm system to ensure safety;
►The distance adjustment of the feeding roll,press roll,and netted roll are achieved by electric control;
►Central collection system for the dust and waste flakes
►With automatic zero setting and reset function;
►Driving gears are imported products,its grinding hardness is above 60 degrees;
►Adopted joint ring-free technology,to reduce abrasion and achieve precise printing result;
►Select the excellent materials and parts,all orders are made of the fine steel,with chrome plating and harden treatment;
►Adopted gear lubricant auto self-balance device,to keep the lubricant levels in each unit uniform at all times;
Technical Parameters

Fully Automatic Lead Feeder Flexo Three Color Printing Slotting Die Cutting Machine

Computerised Flexo Corrugated Machine , Two Color Flexo Printing Machine 0

Ov

Model Unit LUM-2000 LUM-2200 LUM-2400 2600

Design Speed



Pcs/min 120/150/220
Economic Speed Pcs/min 75-80/110-130/155-160
Max.feeding size mm 950×2000 950×2200 950×2390 1300×2390
Min.size of paperboard mm 260×500 260×504 260×504 260×504
Min. space of slotting Obverse

mm



160×160×160×160 160×160×160×160

Reverse knife

mm



280×80×280×80 280×80×280×80
Max. depth of slot mm 240 240 240 300
Skip feeding size mm 1100×2000 1100×2200 1100×2400 1500×2400
Max.printing area mm 950×1800 950×2000 950×2200 1250×2200
Plate Thickness mm 7.2 7.2 7.2 7.2

erall Dimensions (mm) L*W*H
15000×4500×1800


Configuration
Feeder Unit
►Continuous or skip feeding is available with counter;
►Main motor is protected from starting up when units are not fully closed and locked.
►Motorized backstop forward /backward and up/down position for easy and quick adjustment;
►Copy sun automation lead edge feeder with strong vacuum transfer for precise and stable feeding;
►Feeding roll is made of two-layer rubber,inner layer is soft and outer layer is hard,this makes inner layer more flexible and surface more wear-resistant,and reduce the flute damage of the cardboard;
►Dust remove system with brush and segmented vacuum sheets cleaner;Self-locked system adopts for adjusting feeding rolls gap,motorized and PLC control of feeder side guides;

►Cleaning function can be automatically switched to ensure the ink recycling thoroughly.
►Pneumatic clutch is adopted on the anilox roll to:
(1)Make the roll stop when the unit is not printing;
(2)Allow units which are not in use to be washed up while running;
(3)Make the roll run at the same speed as the main motor when the unit is printing;
(4)Reduce the possibility of damage to the rubber roll and the anilox roll for inproper operation.
►A fixed device of printing register and brake of electromagnetic clutch is used when the unit is opened.upon closing the unit,the positions are precisely restored so the unit is ready for production without adjustment.
►Mounting roller with left and right both of side locking device,let the mounting position more accurately.
Slotting Unit
►Motorized controls of the slotting bosses caliber.
►The first pre-creasing,the cardboard not be damaged after prepressing.
►Upper creasing roll covered by anvil ring,so cardboard is not damaged easily.
►Slotting register and height of carton box are digital controlled by motor and PLC.
►Flexible angle cutting knife can cut 3 or 5 or 7 ply cardboard with no adjustment,easy to operate.
►Single shaft five blades slotting ,an internal gear adjusts the height of the carton box and prevents the lubricating oil from spilling or leaking onto the cardboard
►Upper boss and lower boss are coupled to keep the two knives aligned while moving,which is helpful to prolong service life.
►Slotting bosses move along liner lead rails and are driven by lead screws for flexible and precise movement.
►Transversal movement of the pre-creasing rolls,and slotting bosses’ are digital controlled by motor and PLC
►A protective device prevents the slotting knife from crashing when the height of the carton box is adjusted.
Die Cutting Unit
►With separate servo motor.
►Anvil cover is Depride made from Germany
►Side to side oscillation of anvil drum(45mm)
►Die-cutting register is digitally controlled by motor and PLC
►Motorized caliper adjustment between anvil roll and die drum.
►Anvil trimmer to keep surface of the anvil covers flat and smooth.
►The die drum’s transverse movement can prolong the service life of anvil cover.
►The die-cut cylinder lateral register is digitally controlled by motor and PLC,rang about±10mm
►Anvil rubber roller speed compensation adopted independent motor for driving to control the rubber roller speed,the compensation scope is ±3mm.
►Auto speed compensation system controlled by the independent motor can achieve the superb die accuracy.
Customer

►Variable frequency drive control for vacuum blower fan for increased or decreased vacuum suction to match different size cardboard.
Printer Unit
►Quick set and self locking pull collars.
►Automatic resetting after cleaning the printer.
►With four unit ceramic roller and doctor blade.
►ceramic roller LPI according to customer requirement.
►with six units ceramic roller and four units doctor blade.
►Printing register is digitally controlled by motor and PLC.
►Transverse register is also digital controlled by motor and PLC ±10mm.
