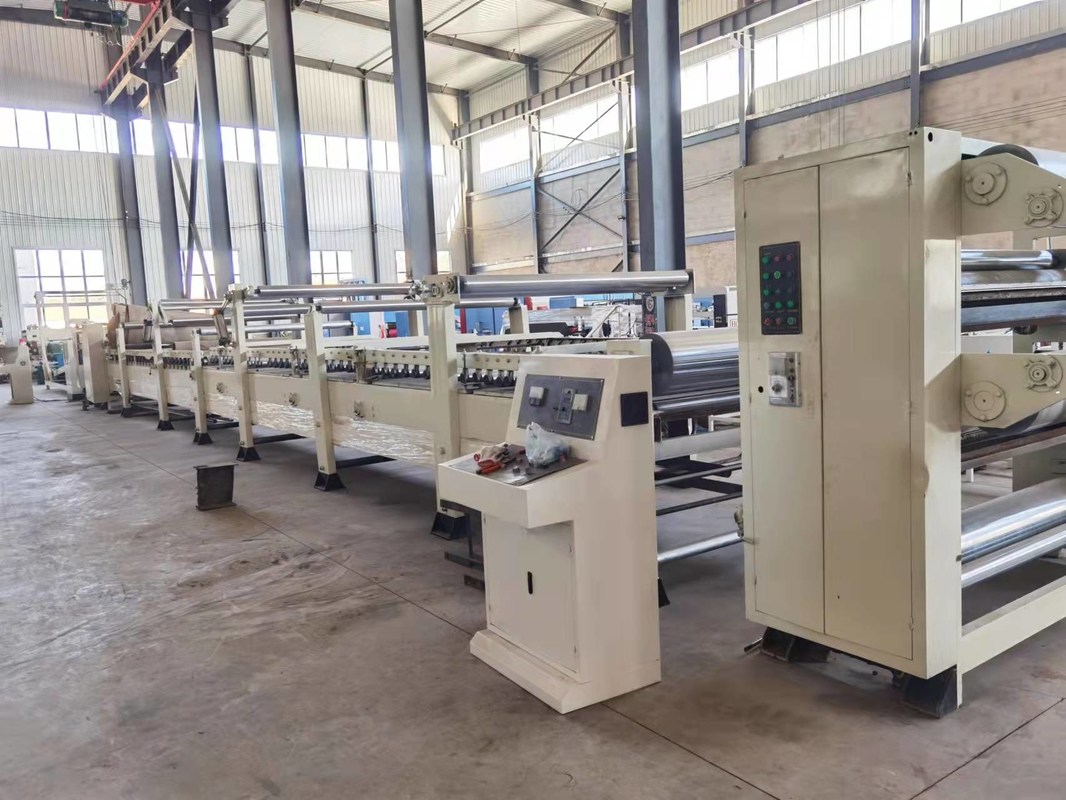

second hand 5 ply Corrugated cardboard production line/corrugator machine
Main equippment list:
1. Mill roll stand (mechanical and hydraulic shaftless is available)
2. Splicer(option, it is used for high speed production line)
3. Single facer
6. Gluing machine
7. Double facer
8. Thin blade slitter scorer(simple type, up-down type, and computer control for options)
9. NC cut-off(servo control, straight and helical)
10. Stacker and delivery machine
11. Paste making system
12. Accessories(air compressor, operation box, pipe)
Main technology parameter:
|Steam pressure and consumption
||Pressure: 1-1.3Mpa consumption: 2500-3200kg/h
|Air pressure and consumption
||Pressure: 0.8-1.0Mpa consumption: 1.3m³/min
||About 80m(depend on base drawing)
||About 80m×4.3m× 4.5 m (L×W×H)
Hydralic mill roll stand
* Operation style of base paper stand: Electrically mechanical type
* Dia. of clip paper: Φ350mm - Φ1400mm
* Max. weight of one side: 2000kg
* Working pressure of air supply: 0.6-0.9 MPa
* Total power: 5.2kw
A. The symmetric structure can be installed with two bundles of base paper at the same time used to change papers without halt.
B. This machine adopts the electrical driver to finish lifting up or down, clamping, loosening and centering the base paper.
C. This machine adopts the pneumatic tension controller to adjust the tensile force of base paper.
D. The head of clip paper adopts expansion style.
E. The tension control adopts pneumatic braking, which can also be on-line control together with Paper Splicer.
|Max. working width
|Max working steam pressure:
|Diameter of heating roller
Single Facer Machine
* Design speed: 80m/min.
* Corrugated rollers made of 48CrMo alloy steel, with heat treatment for hardness HRC58-60, surface plated with chrome treatment.
* corrugating roller: Dia.280mm with a drum.
* Press roller: Dia.320mm. with drum.
* Vacuum suction Fingerless design provides perfect flute formation in high speed manufacturing.
* Gimbal driver system. Individual immersion oil gear type drive box, separating dynamic vibrations improve running stability, easy and fast for maintenance
* Gluing roller: surface is embossed with netting design and chrome plated.
* Adjustment of upper corrugated roller, pressure roller and glue roller controlled by pneumatic system.
* With preheating and preconditioning rollers.
Double Glue Machine
Special line on the surface of the glue applicator roller,surface ane hard chrome palting,even glue suply,low cost.Self-circulating glue supplying system to avoid glue hardenning and to control glue quantity ,keeping the glue goodquality and saving
Double Facer Machine
Man-machine interface PLC automatic control,automatic switching of the heating plate number and size of the pressure to adapt to different kind of paper flute perk intact.Heating plate is surface grinded and chrome-plated,width 600mm.18-22pieces chose.Type of rubber drive roll with vulcanized surface to avoid deviation.
Thin Slitter Scorer Machine
Automatic synchronize with the corrugated line and can also get in line with manufacture management system.High compatibility. Three types which can also be alternated with electrical system scroing can also be computer controlled tith fine scring results.
