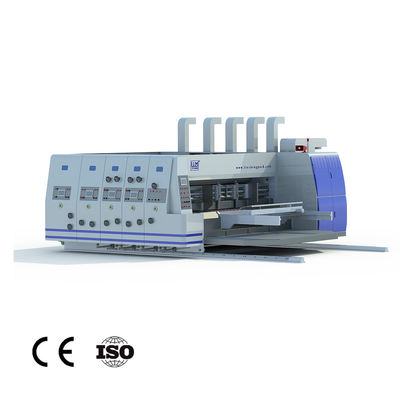

• Paper Carton Printing Slotting Die Cutting Machine Fully Servo Control
Paper Carton Printing Slotting Die Cutting Machine Fully Servo Control

Paper Carton Printing Slotting Die Cutting Machine Fully Servo Control

Product Details:

Place of Origin: China
Brand Name: AD
Certification: ISO CE SGS
Model Number: ad-inline

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 12000
Packaging Details: as per need
Delivery Time: 35
Payment Terms: D/A, D/P, T/T, L/C, Western Union
Supply Ability: 1000sets
Get Best Price Contact Now

Detail Information

Type: Automactic Printing Die Cutting Folder Gluer Machine Use: For Carton Print Slotting And Die Cutting
Machine Type:: Automatic Application: Carton Box Making Machine
Roller: 420 480 530 Design Speed: 200m/min
Dimension(L*W*H): 12000*3500*2000mm Application:: Food, Beverage, Commodity, MEDICAL, Chemical, Machinery
High Light:

Carton Printing Slotting Die Cutting Machine


Paper Printing Slotting Die Cutting Machine


Slotting Die Cutting Machine Servo Control

Product Description


Paper Carton Printing Slotting and Die Cutting MachineOnline With Folder Gluer Machine



Control Unit

  1. Fully Servo Control Vacuum Suction Corrugated Box Making Machine.
  2. All position adjustments controlled by PLC, encoder tracking
  3. Carton machine computer centralized control, Rexroth Bosch Group servo drivers is for option.
  4. Remote after service can be realized
  5. Each unit equipped with man-machine interface, easy to operate, accurate on adjustment.
  6. Carton machine and carton making machine are made in very good quality with the best prices

Paper Carton Printing Slotting Die Cutting Machine Fully Servo Control 0


Carton machine feeding Unit

  1. Apply lead edge feeding patent technology, feed all types of corrugated paper board accurately and speedily lx707
  2. Paper feeding servo motor drive double rubber roller, without transmission mechanical error, upper roller is wrapped with wearable rubber, air pressure adjustment function to prevent cardboard from deformation, and to keep feeding accurate.
  3. Vacuum lead edge feeding, air volume, air pressure adjustable to fit paper size
  4. De-dust device removes dust and dirt from printing surface, and enhance printing quality
  5. No backlash transmission technology, reduce transmission error to the minimum
  6. No need self-circulating lubrication system, achieve environment friendly production
  7. Feeding clearance motorized adjustment, touch screen control


Paper Carton Printing Slotting Die Cutting Machine Fully Servo Control 1

Printing Unit

  1. Forme roller and pressure roller made of high quality alloy steel, with grinded and chrome plated surface lx707
  2. Dynamic and static balancing make steadily running
  3. Hanging forme, make installation easy and quick
  4. Forme changing both foot switch, and/or PLC panel control (forward / backward run)
  5. Anilox roller auto lifting synchronous with paper feeding system (In feeding anilox roller press down whereas in stop, it release)
  6. Independent servo motor driving, to eliminate cumulate error of system
  7. Carton making machine printing phase automatic adjustment by man-machine interface and servo drive
  8. Forme roller intelligent zero returning, short cut resetting under dynamic and static condition
  9. Carton machine ceramic anilox rollers, enclosed chamber doctor blade system, achieve 80-90 lines quality printing
  10. AC servo control, peristaltic pump ink supplying and spreading, quick, economy, easy cleaning.
  11. Arc shaped, aluminum alloy chamber of doctor blade, raise anti-bending ability by 30%, ink reserves decreased by 20%; Lined with environmental protection fluorine layer, meet requirement of easy and non-stick cleaning
  12. Carton making machine suck blower, roller sending, synchronous with pressure roller, over print precision ± 0.35mm lx707
  13. Motorized adjust and digital display the forme roller transverse moves, up to 20 mm
  14. Clearance between anilox roller and pressure roller automatic adjustment, encoder tracking and recording (Carton machinery Input data at PLC touching panel to make automatic adjustment)
  15. Hot air drying or cold air drying can be choosing based on printing speed lx707
  16. AC servo motor with no backlash power transmission device, make gear lubrication unnecessary
