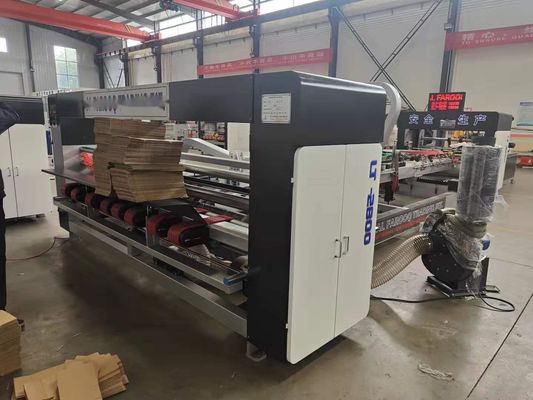

Corrugated Carton Auto Folder Gluer Machine
|Place of Origin:||CHINA|
|Model Number:||Automatic folder gluing machine|
Payment & Shipping Terms:
|Minimum Order Quantity:||1SET|
|Packaging Details:||as per need|
|Delivery Time:||7-10 days|
|Payment Terms:||L/C, D/A, D/P, T/T|
|Supply Ability:||1000 sets|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Field Maintenance And Repair Service, Field Installation||Type:||Automatic Folder Gluing Machine|
|Automatic Grade:||Automatic, Semi-Automatic||Driven Type:||Electric, Mechanical|
|Application:||Machinery & Hardware, Food, Medical, Textiles, Commodity|
Corrugated Carton Auto Folder Gluer Machine,
Corrugated Auto Folder Gluer Machine
Automatic gluing & stitching corrugated carton& box machine
high speed gluer stitcher machine
Main Technology Parameters:
|Max cardboard size||1200×2400||1200×2600||1200×2800|
|Min cardboard size||170*450||170*450||170*450|
|Application board thickness||3layer or 5layer|
1: Vacuum suction feeding to feed warping paperboard easily.
2: Quality electromagnetic clutch and brake adopted, feeding section is controlled independent, operation easily.
3: Scorer wheel adjustable, suit for 2-8mm thick paperboard.
4: Second creasing struction can impress again the paperboard which was not creased well.
Gluing and Folding section
1: Simple structure and high reliability, glue quantity adjustable, cleaning easily.
2: Stainless steel glue wheel adopted, long life and saving glue cost.
3: Improved quality rubber belt adopted, automatic folding.
4: with paperboard rectify device and creasing rectify device.
Counter and stacker section:
1: Stacking and counting are simple and reliable.
2: Digital control, operation easily and reliable, No-stop put in data and automatic counting.
3: With rectification function.
4: Paperboard counting and put out by pneumatic, stable and quickly.
Whole machine Description and feature:
This automatic folder gluer machine consist of three sections: vacuum feeding section, gluing and folding section, counter and stacker section. Frequency conversion motor with quality inverter adjust speed, PLS touch screen control system for easy operation and running stable. Average speed is 150sheets per/min. Energy conservation and high speed, Saving labor cost.
