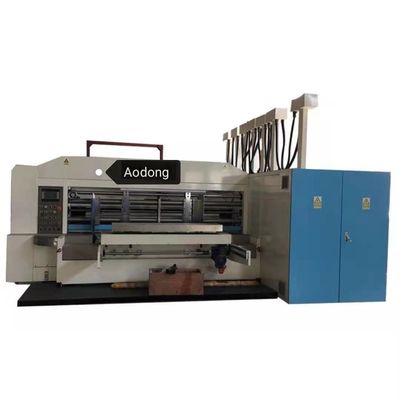

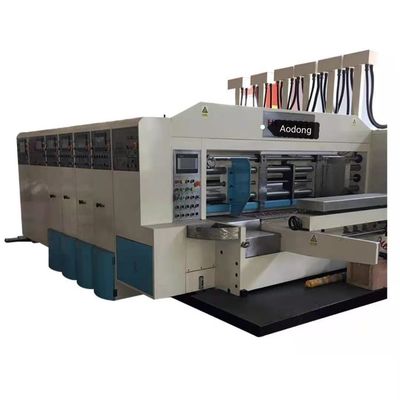

Multicolor Flexo Printing Slotting Die Cutting Machine , Flexographic Printing Equipment

Multicolor Flexo Printing Slotting Die Cutting Machine , Flexographic Printing Equipment

Product Details:

Place of Origin: CN
Brand Name: Aomei
Certification: ISO9001
Model Number: AoMei - 78

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 1200 -1800 USD
Packaging Details: wood
Delivery Time: 35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 45 sets per year
Get Best Price Contact Now

Detail Information

Type: Flexographic Printer,Carton Printer Slotter Die Cutter Machine,Carton Box Printing Machine,automatic,WY-P4 Automatic Grade: Automatic,Full-Atuomatic,Semi-Automatic,Full-computerized,Semi
Voltage: 380V,220V/380V/440V,380V 50hz 3phase,380V/3Phaze /50Hz Or Customized,380/440v Warranty: 1 Year,12 Months,2 Years,1.5 Years,12month
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Online Support,Video Technical Support,Field Installation Applicable Industries: Manufacturing Plant,Printing Shops,Food & Beverage Factory,Construction Works ,Building Material Shops
Usage: Paper Printer,Card Printer,Label Printer,corrugated Paperboard Printing Condition: New
Plate Type: Letterpress,Flatbed Printer,flexo Weight: 18Ton,6000kg,Machine Model
Color & Page: Multicolor,Two Colors Speed: 140/min,200PCS/min,0 To 60pcs/min,60 Pieces/min,60-150 Sheets/min
Dimensions(l*w*h): 2500mmX 1700MMX 2600MM,3900*2060*2950mm,15000x6000x2100mm,8X4X2M,7500x5000x2400 Application: Carton Box Making Machine,Corrugated Carton Box
Color: Any Color,Requirements,1-6 Color Optional Name: Flexo Ink Corrugated Carton Flexo Printing Machine,flexo Printing Slotting Die Cutting Machine,Chain Feed Flexo Printing Slotter Die Cutter/Carton Box Making Machine,two Colors Printing Die-cutter Machine,multi Color Ink Printing Receiving Paper Machine
Product Name: Slotter Die Cutting Machine,Automatic High Speed High Definition Printing Machine,Printing Machine,printing Slotting Die-cutting Folder Gluer Line,Printing Slotting Die Cutting Machinery Gross Power: 25 KW,15kw,50-150KW,7KW
Machine Type: Carton Printing Machine,Paper Pulp Molding Machine,Carton Packaging Machinery,High Speed Flexo Printing Machine Colors: 1-6 Colors,1--6colors For Choose,Multicolor
High Light:

Multicolor Flexo Printing Slotting Die Cutting

,

Multicolor Flexographic Printing Equipment

,

Flexo Printing Slotting Die Cutting Machine

Product Description

Do You Know About High Speed Carton Printing Slotting Die-Cutting Machine ?





Machine Features:



1. Control on the main console and each unit console with display adjustment system, store repeated order, easy for operation.

2. Motorized plate mounting, auto reset, quick order change.

3. Each unit is equipped with emergency stop switch to ensure safe operation.

4. Using self-locking gap adjustment device for easy operation.

5. Transmission gears are made by precision and grinded alloy steel. The transmission system is equipped with spraying circulating lubrication system.

6. Electric element, bears and pneumatic element are all used international brand.



Main specification:



Max feeding size(mm) 900x2000
Max printing size(mm) 880x2000
Skipping feeding size(mm) 1100x2000
Min feeding size(mm) 260
Max slotting depth(mm) 225
Max machine speed(pcs/min) 180
Min slotting interval(mm) Normal 145x145x145x145
Reverse 230x60x230x60



Feeding Unit:Multicolor Flexo Printing Slotting Die Cutting Machine , Flexographic Printing Equipment 0



1. Lead edge feeder (belt type), adjustable air volume, more stable speed acceleration.

2. Accelerate the stability of transmission of the thin and curvy cardboard.

3. Left-right side and front feed gate movement are motorized adjustment. Equipped with powerful duster.

4. Feed cardboard Intermittently , quantity of product and production speed display by counter.



Printing unit:



1. 360.register is motorized adjust with digital display. It can be adjusted when the machine is running or stop with automatically return to zero.

2. Lack ink alarm, automatic anilox rollers engagement and disengagement to avoid ink attain it, and to prevent the damage on the flexo plate.

3. Precise planet-gear to ensure the machine with fine register and long life.

4. The conveying rollers have been running-balance checked to ensure precision transmission.



Creasing and Slotting Unit:



1. Pre-creasing wheel to prevent crushing board.

2. New type guide system for the creaser heads and slotter heads more smoothly moving.

3. Total 999 orders can be preset or memorized by computer.

4. Adopt spring-bar waste removing device to save cost.



Rotary Die-Cutting Unit:Multicolor Flexo Printing Slotting Die Cutting Machine , Flexographic Printing Equipment 1



1.Precise planet-geared phase adjusting device be equipped.

2.Motorized adjusting the pressure of slotting.

3.Automatically lateral movement is 40mm.

4.Quick change anvil blankets (from USA).

5.Mechanical differential compensation device prolongs the life of anvil blankets and improves die-cut quality.

6.Motorized timing anvil blankets device ensures quick reset and compensation.



Stacker:



1.Connection arms can be operated manually or automatically.

2.Connection arm speed is normally the same as feeding. It can be adjusted according to the feeding speed.

3.Left and right flapping devices make paperboards in order and squared and stacked height up to 1700mm.

4.Strong chain controls the up and down of transport bed.

5.A device that prevents the collecting hub from failing for operator safety.

6.Paperboard pile changing is automatic. A pneumatic controlled plate will be pop-up to hold

the coming paperboard, when the pile reaches a pre-set height.

7.Flat belt with fold can prevent paperboard from failing.

8.The tension of the belts for connection arm can be adjusted independently, no restriction for belt length.
